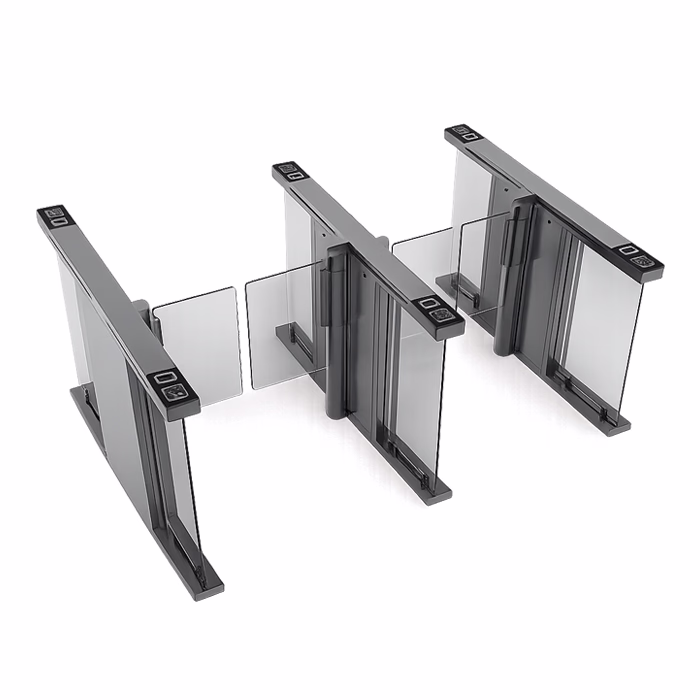

VARITO VSB-1202B Speed Gate Turnstile
VARITO VSB-1202B Speed Gate Turnstile is a high-speed entrance control solution designed to deliver secure, reliable, and efficient access management for a wide range of applications. Combining advanced security performance with a modern and elegant design, it offers a premium passage solution for facilities that require both protection and convenience.
The VARITO Speed Gate Turnstile is ideal for environments such as corporate offices, universities, hospitals, airports, railway stations, banks, shopping centers, supermarkets, and government buildings. It is engineered to prevent unauthorized access while ensuring fast and smooth movement for authorized users. The system can be integrated with a variety of access control technologies, including RFID readers, bio-metric systems, bar-code scanners, and other authentication devices.
Built with high-quality stainless steel and tempered glass, the speed gate offers excellent durability, long service life, and dependable performance even in high-traffic areas. Its sleek and contemporary appearance enhances the professional image of any facility while maintaining strong security standards.
Product Details:
| Brand: | VARITO |
| Model | VSB-1202B |
| Passage width | 600–900mm |
| Indicator Display | Blue, Green and Red LED Indicator |
| Sensor |
Infrared sensor alarm function/pcs |
| Function |
Anti-intrusion and Anti-reverse |
Many Features
Infrared sensor alarm function
In case of illegal intrusion and reverse intrusion
Anti-intrusion function
The gate is locked automatically until a valid opening signal is input
Anti-reverse function
The turnstile alarms if someone tries to enter in the reverse direction
Anti-trailing function
The speed gate alarms if someone attempts to pass through without permission
Secure and Reliable
Advanced security features such as bio-metric authentication
LED indicator
Blue, Green and Red LED indicator display passing status
Easy to install
Easy to install and maintain
Mechanism self-protection
Arm length can range from 600mm up to 900mm
Specification
| Item | Details | Product Size | 1500×120×1000 mm |
|---|---|
| Material | SUS 304 stainless steel; vacuum plating |
| Thickness | 1.5 mm |
| Passage Direction | Single directional / Bi-directional |
| Passage Width | 600 mm (customizable up to 900 mm) |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 40 persons/min (using card) |
| Reaction Time | 0.2 s |
| Driving Voltage | DC 24V, 6.25A |
| Working Temperature | -20°C ~ +70°C |
| Power Input | AC 220V, 50Hz |
| Power Input (Alt) | AC 110V–220V ±10% |
| Motor | Brushless Servo Motor |
| Mechanism | Brushless Speed Gate Mechanism |
| Backup Power | Supercapacitor (12V / 3A) |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Product Description
VARITO VSB-1202B Speed Gate Turnstile
A Legacy of Security Excellence
Combining advanced security performance with a modern and elegant design, it offers a premium passage solution for facilities that require both protection and convenience.
Optimizing Your Entry Experience
Built with high-quality stainless steel and tempered glass, the speed gate offers excellent durability, long service life, and dependable performance even in high-traffic areas.
We Provide Multiple Solutions
Can integrate a variety of access control equipments
Interactive Images
Easy Installing, NO Need Any Special Electrician Skills Fix on ground, connect to power supply, it will work
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
More Information
Smart Access Control Solution for Modern Security
The VARITO VSB-1202B Speed Gate Turnstile
The VARITO VSB-1202B Speed Gate Turnstile emerges as a premier solution, blending sophisticated aesthetics with cutting-edge biometric integration. Designed for high-traffic environments, this model ensures that only authorized personnel gain entry while maintaining the architectural elegance of your lobby or entrance.
Key Features of Flap Barrier
Why the VARITO VSB-1202B is the Gold Standard
The VSB-1202B is not just a barrier; it is an intelligent access management system. Engineered with high-performance DC brushless motors, it offers smooth, silent, and rapid gate movement. Whether it is a corporate headquarters, a data center, or a high-end commercial hub, this speed gate is built to handle the rigors of daily peak-hour traffic without mechanical fatigue.
A Legacy of Security Excellence
When you choose a VARITO product, you are investing in a brand synonymous with reliability and innovation. As a leader in the security automation industry, VARITO has consistently set benchmarks for durability and technical support. The brand’s commitment to quality ensures that every VSB-1202B unit undergoes rigorous stress testing to meet international safety standards.
Beyond speed gates, VARITO offers a comprehensive ecosystem of entry solutions. If your facility requires different security tiers, you might explore the VARITO Tripod Turnstile for cost-effective flow control, or the VARITO Flap Barrier Gate for stylish indoor access. For maximum perimeter protection, the VARITO Full-Height Turnstile Gate provides an un-climbable, heavy-duty solution.
To build a complete security ecosystem, VARITO also offers:
1. VARITO Full Height Turnstile
2. VARITO Tripod Turnstile Gate
3. VARITO Flap Barrier Gate
4. VARITO Metal Detector Gate
Ideal Applications of Speed Gate
- Corporate offices and commercial buildings
- Industrial factories and warehouses
- Educational institutions and campuses
- Stadiums, event venues, and amusement parks
- Government facilities and secure premises
- Metro stations, bus terminals, and transport hubs
Conclusion
The VSB-1202B is designed for easy maintenance and longevity. Its stainless steel chassis is resistant to corrosion, making it a long-term asset for your facility. By integrating the VARITO VSB-1202B, businesses can significantly reduce the need for manual guarding, allowing security personnel to focus on higher-level monitoring while the technology manages the frontline.
Frequently Asked Questions (FAQs)
1. What happens to the VSB-1202B speed gate during a power failure?
The system features an automatic fail-safe mechanism. In the event of a power outage, the barriers will automatically open to allow for an unobstructed emergency exit, complying with fire safety regulations.
2. Can the VARITO VSB-1202B be integrated with third-party software?
Yes, the VSB-1202B is designed with an open architecture that allows for seamless integration with most third-party access control software and attendance management systems.
3. Is the speed gate suitable for outdoor installation?
While the VSB-1202B is highly durable, it is primarily designed for indoor use or semi-outdoor environments with overhead protection to ensure the longevity of the sensitive infrared sensors and electronics.
4. How many people can pass through the speed gate per minute?
Depending on the authentication method used (RFID vs. Biometric), the VSB-1202B can comfortably facilitate 35 to 45 people per minute, making it ideal for busy office receptions.
5. What is the maintenance requirement for VARITO speed gates?
VARITO systems are engineered for low maintenance. A quarterly inspection of the sensors and a simple cleaning of the internal mechanical components are usually sufficient to keep the system running at peak performance.
